- 100% BlueScope Steel
- 15 year BlueScope Steel
structural warranty
- 450 Mpa (or greater) on all
structural components
- Fully bolted frames on all
buildings plus structural screws
- No welding for greater
strength
- Premium quality steel building
solutions
|
|
|
|

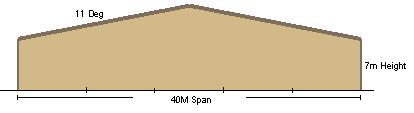

Spans: |
6 to 40M |
|
Heights: |
2.4 to 7M |
|
Bay Widths: |
3 to 8M
(Up to 12m for Open Bay One Side) |
|
|
|
Wind Rating: |
|
41ms - 69
ms (metres per sec)
147 kmh - 248 kmh
91mph - 154mphto
|
|
Roof Pitch: |
|
From 11 to 22
degrees |
|
|
Large Lable Industrial | Commercial |
Machinery:
Barn Styles:
|
|
|
Spans: |
|
3.5m up to 6m (or greater) |
|
Skillion (LeanTo): |
|
2.7m to 5m (depends on span) |
|
Heights: |
|
3.6 to 5m for centre building
Skillion height minimum is 2.4m |
|
|
|
|
|
|
|
|
|
Spans: |
|
3.5m up to 12m (or greater) |
|
|
Definitions: |
|
|
|
Bay Width: |
|
Distance between Column Centres along side wall (Under the
Eaves)
|
|
Height: |
|
From top of slab or footing to underside of the roof sheet at
side wall of main building
The wall height of a skillion (Lean To) is derived from main
building height less the Drop between that and the lean to
roof less the height from the slop of the lean to roof. Cannot
be less than 2.4
|
|
Span: |
|
Width of building measured to inside of cladding
|
|
Length: |
|
Overall length of building measured from inside of the
sheeting ie slab size
|
|
Drop: |
|
Is the height of the pelmet drop from Eaves of main building
to where the skillion (Lean To) attaches. If no drop (Aussie
Barn style the roof will be continuous with no gutter on main
building |
|
|
|
|
|
